Joey Timing System

  1. General Details

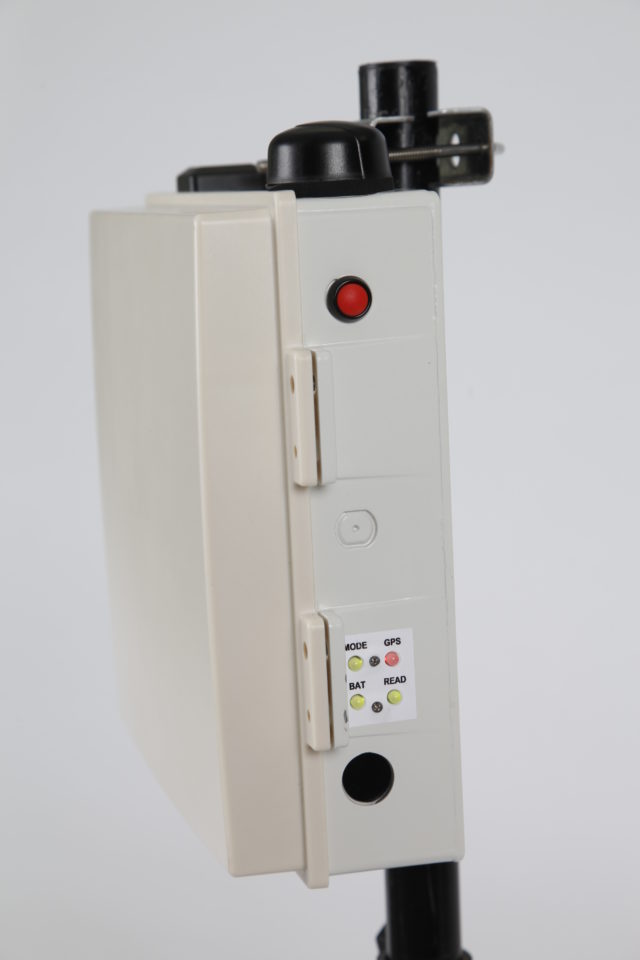

    The Joey Timing System is the newest item to be added to RFID Race Timing Systems growing list of products and has easy interfaces which require no training or prior timing experience in order to operate. It has been designed specifically for schools and clubs looking for a low cost all-in-one solution or events which require a versatile split timing point. The Joey can also perform a complimentary role as a timing split point or automated web kiosk for larger events and contract timers. The system is housed in a rugged weatherproof enclosure with integrated 8.5dBi antenna.

    • Low cost, modular, lightweight and versatile UHF Timing System
    • Ability to connect an additional antenna
    • Up to 10m read range with Gen2 UHF timing chip
    • Bluetooth connectivity to our free IOS and Android App
    • Complimentary and simple to use scoring software
    • Use the same unlocked and low cost transponders that Ultra users enjoy
  2. Specifications
    • 31.5 dBm maximum power output of reader
    • FCC and EU frequency ranges. Choose frequency at time of order.
    • Ethernet port for LAN connection
    • Bluetooth BLE chip for wireless connection
    • GPS time sync in 40 seconds using all four global networks (GPS, GLONASS, Bei Dou and Galileo)
    • Simple start and stop button
    • GPS status, Read Mode, Chip Read, Modem status and Battery Level LED’s
    • External antenna ports for up to 3 external antennas
    • Onboard flash memory stores up to 1 million chip times
    • Buzzer with volume control
    • Internal rechargeable 45 Whr Li-Ion battery for 10hr run time.
    • Included AC charger/power supply
    • Clamp included
  3. Optional Accessories
    • Antenna Mat (special version for Joey)
    • Side Antenna

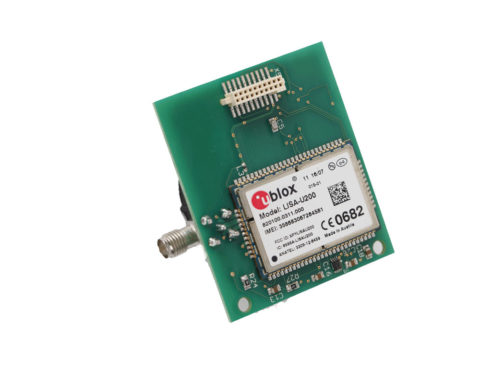

    • In-built 3G Modem and dual 3G/GPS antenna upgrade
    • Scoring software
